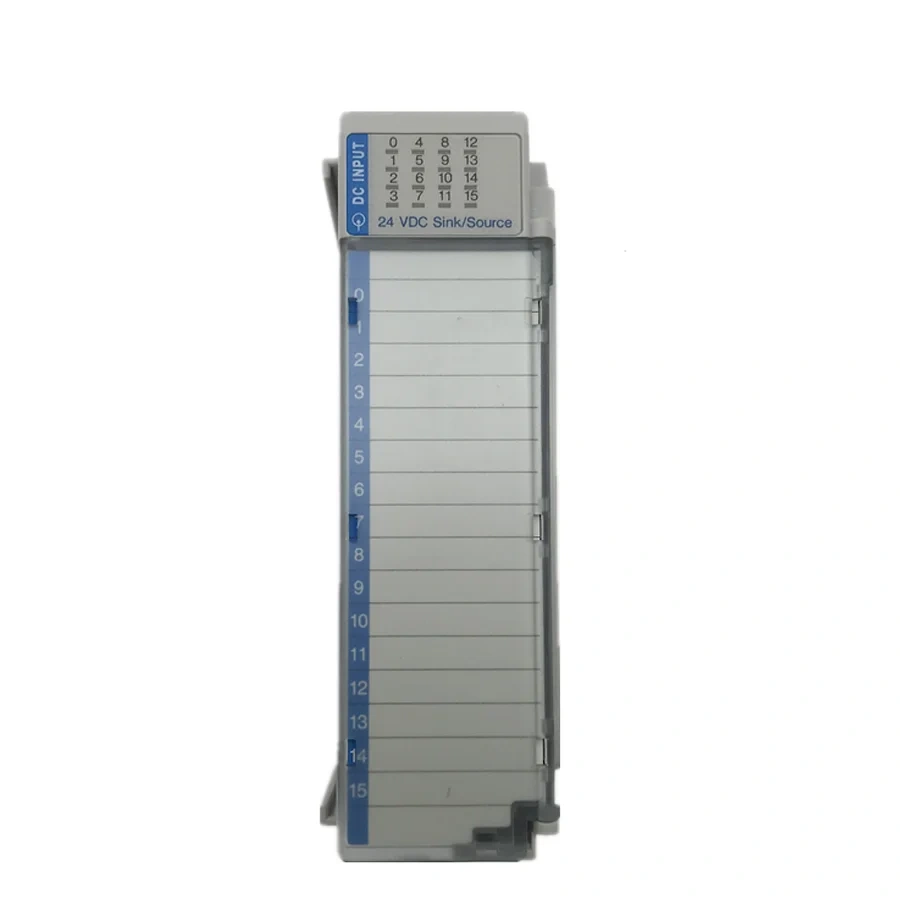

1769-IQ16 1769IQ16 PLC Controller Module

1769 Compact I/O Modules Specifications
Catalog Numbers
The 1769 Compact I/O™ modules can be used in these applications:
• With a 1769 CompactLogix™ controller
• For expansion I/O in a MicroLogix™ 1500 controller assembly
• In an assembly with a 1769-ADN DeviceNet® adapter
• In an assembly with a 1769-AENTR Ethernet adapter

Digital I/O Modules
1769-IA8I, 1769-IA8IK, 1769-IA16, 1769-IA16K, 1769-IM12, 1769-OA8, 1769-OA16, 1769-OA16K, 1769-IG16, 1769-IQ16, 1769-IQ16K,
1769-IQ16F, 1769-IQ32, 1769-IQ32K, 1769-IQ32T, 1769-IQ6XOW4, 1769-OB8, 1769-OB8K, 1769-OB16, 1769-OB16K, 1769-OB16P,
1769-OB32, 1769-OB32K, 1769-OB32T, 1769-OG16, 1769-OV16, 1769-OV32T
Contact I/O Modules 1769-OW8, 1769-OW8I, 1769-OW8IK, 1769-OW16, 1769-OW16K
Analog I/O Modules 1769-IF4, IF4K, 1769-IF4I, 1769-IF4XOF2, 1769-IF4XOF2K, 1769-IF4FXOF2F, 1769-IF8, 1769-IF8K, 1769-IF16C, 1769-IF16V,
1769-IR6, 1769-IT6, 1769-OF2, 1769-OF2K, 1769-OF4, 1769-OF4K, 1769-OF4CI, 1769-OF4VI, 1769-OF8C, 1769-OF8V
Specialty Modules 1769-ARM, 1769-ASCII, 1769-BOOLEAN, 1769-HSC, 1769-SM2
Accessories 1769-ECL, 1769-ECLK, 1769-ECR, 1769-ECRK, 1769-ECL, 1769-ECLK, 1769-ECR, 1769-ECRK, 1769-CLL1, 1769-CRR1, 1769-CRL1,
1769-CLL3, 1769-CRR3, 1769-CRL3
Topic Page
Summary of Changes 2
I/O Module Overview 2
Environmental Specifications 2
Certifications 3
Place Compact I/O Modules 4
Digital I/O Modules 5
Contact I/O Modules 25
Analog I/O Modules 29
Specialty I/O Modules 53
Compact I/O Mounting Dimensions 61
Compact I/O Accessories 61
Wiring Systems 64
Additional Resources 65
