| Mfr. Part Number: | 1756PA72 |
| Manufacturer: | Allen-Bradley / Rockwell Automation |

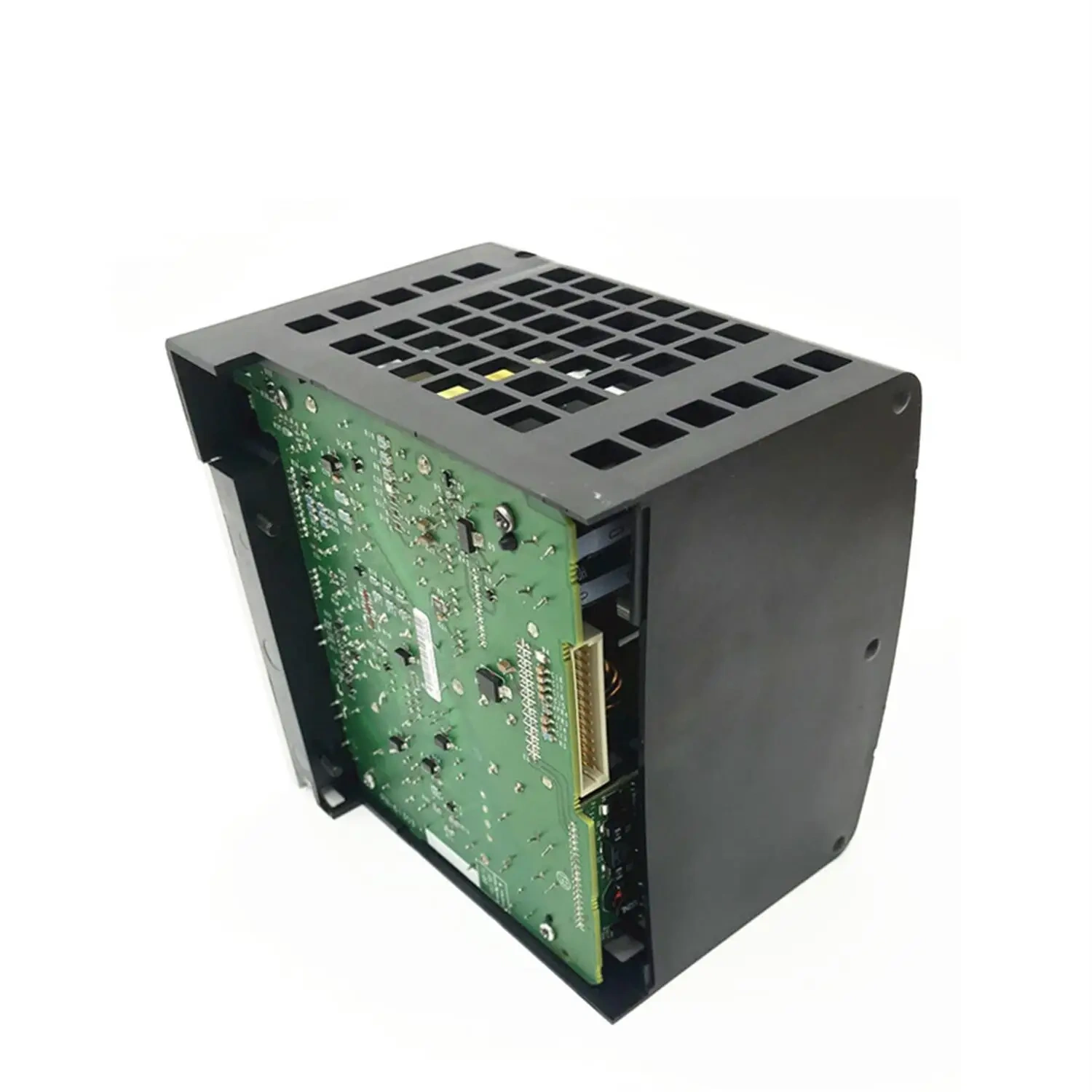

| Description: | Allen-Bradley 1756-PA72 ControlLogix Power Supply 85-265VAC / 5V@10A Rack Mount |
| Full Description: | Allen-Bradley 1756-PA72 ControlLogix 85-265V AC Power Supply (5V @ 10 Amp), Rack Mount. Input voltage: 85-265V AC; Input voltage, nom: 120V/220V AC; Input frequency: 47-63 Hz; Input power, max: 100VA/ 100 W; Output power, max: 75 W @ 0-60 °C; Power dissipation: 25 W @ 0-60 °C; Hold up time, VAC 50/60 Hz: 5 cycles @ 85V AC, 6 cycles @ 120V AC, 6 cycles @ 200V AC, 6 cycles @ 240V AC; Inrush current, max: 20 A; Current capacity at 1.2/3.3/5.1/24 V: 1.5/4/10/2.8 A; Isolation voltage: 250V continuous; Weight, approx.: 1.12 kg (2.10 lb). The power supply is attached directly on the left end of the chassis, where it plugs directly into the backplane. The power supply determines which chassis can be used. The 1756-PA72 power supply can be used with ControlLogix chassis Series A and B. The 1756PA72 power supply mounting location: Left side of 1756 chassis. |
