Description
Transducer System
The 3300 5mm Proximity Transducer System consists of:
• a 3300 5 mm probe 1, 2
• a 3300 XL extension cable (ref 141194-01)
• a 3300 XL Proximitor* Sensor 3, 4, 5 (ref 141194-01)

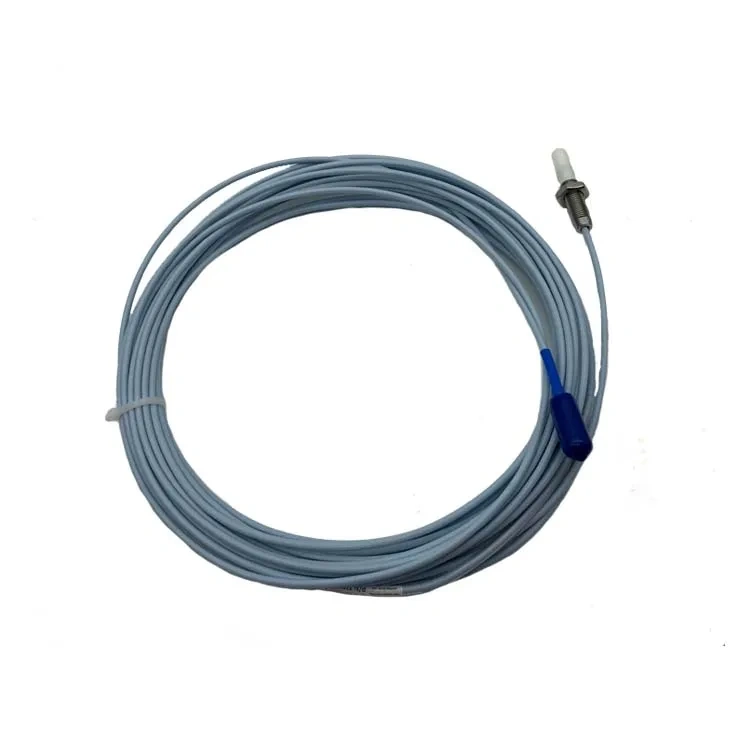

3300 XL 8 mm Proximity Probes, Metric:
330103 3300 XL 8 mm Probe, M10 x 1 thread,
without armor2
330104 3300 XL 8 mm Probe, M10 x 1 thread,
with armor2
Part Number-AXX-BXX-CXX-DXX-EXX
A: Unthreaded Length Option
Note: Unthreaded length must be at least 20 mm less
than the case length.
Order in increments of 10 mm.
Length configuration:
Maximum unthreaded length: 230
mm
Minimum unthreaded length: 0 mm
Example: 0 6 = 60 mm
B: Overall Case Length Option
Order in increments of 10 mm.
Metric thread configurations:
Maximum length: 250 mm
Minimum length: 20 mm
Example: 0 6 = 60 mm
C: Total Length Option
0 5 0.5 meter (1.6 feet)
1 0 1.0 meter (3.3 feet)
1 5 1.5 meters (4.9 feet)
2 0 2.0 meters (6.6 feet)
5 0 5.0 meters (16.4 feet)
9 0 9.0 meters (29.5 feet)
Note: 5-meter probes are designed for use with the 5
meter Proximitor sensor only.
D: Connector and Cable-Type Option
0 1 Miniature coaxial ClickLoc connector
with connector protector, standard
cable
0 2 Miniature coaxial ClickLoc
connector, standard cable
1 1 Miniature coaxial ClickLoc connector
with connector protector, FluidLoc
cable
1 2 Miniature coaxial ClickLoc
connector, FluidLoc cable
E: Agency Approval Option
0 0 Not required
0 5 CSA, ATEX, IECEx Approvals
