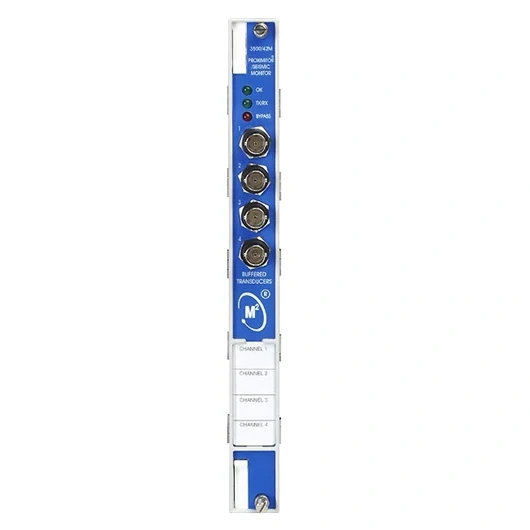

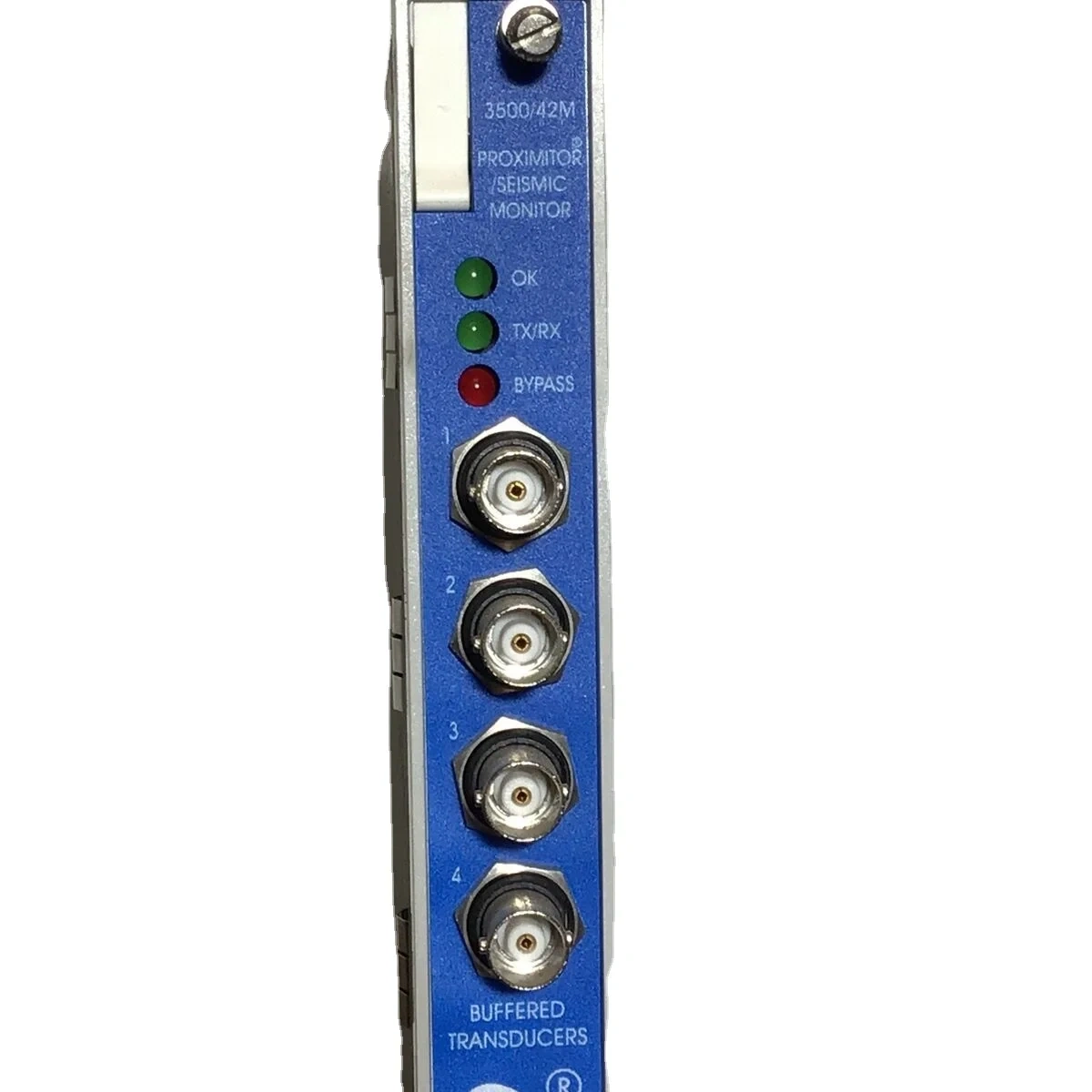

Name: Bently Nevada 3500/42M-09-CN Proximitor Seismic Monitor
Brand: YonaNex Limited
SKU: 1601280186405
Price: 1738.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Place of Origin

United States

Application

Automation

Material

Stainless Steel

Brand Name

Bently Nevada

Model Number

3500/42M-09-CN

Product name

bently Nevada 3500/42M-09-CN Proximitor Seismic Monitor

Input signal

Accepts 1 to 4 signal inputs

Power consumption

7 watts, typical

Operating temperature

-30 °C to +65 °C

Humidity

95%, non-condensing

Weight

2kg

Dimensions

120.7 mm x 25.4 mm x 114.3 mm

Warranty

12 Months

Usage

Power supplier

Condition

100% Original

Packaging and delivery

Selling Units

Single item

Single package size

6X6X6 cm

Single gross weight

3.000 KG

Product Description

The 3500/42M Proximitor Seismic Monitor:
l Protects machinery by continuously comparing
monitored parameters against configured alarm
setpoints to drive alarms.
l Communicates essential machine information to both
operations and maintenance personnel.
The 3500/42M Proximitor Seismic Monitor is a four-channel
monitor that accepts input from proximity and seismic
transducers. It conditions the signal to provide vibration and
position measurements and compares the conditioned
signals with user-programmable alarms.
You can program each channel using the 3500 Rack
Configuration Software to monitor and report:
- Radial vibration - REBAM - Thrust
position
- Acceleration - Differential expansion - Shaft
absolute
- Eccentricity - Circular acceptance
region - Velocity

Specification

Operating Temperature	Internal/External Termination I/O Module: -30 ℃ to +65℃ (-22 ℉ to +150℉)
	Internal Barrier I/O Module (Internal Termination): 0℃to +65 ℃ (+32℉ to +150 ℉)
Storage Temperature	-40℃ to +85℃ (-40 ℉ to +185℉).
Humidity	95%, noncondensing.
Input Signal	Accepts from 1 to 4 proximity transducer signals.
Standard I/O	10 kΩ
TMR I/O	The effective impedance of three Bussed TMR I/O channels wired in parallel to one transducer is 50 kΩ.
Power Consumption	7 watts typical
Sensitivity Radial Vibration	3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil).
Output Impedance	550 Ω
Transducer Power Supply	-24 Vdc

Packing & Delivery

FAQ

1.What kind of sensor do we do?
We offer a very wide variety of vibration,displacement ,speed ,accelerometer sensors or transmitter,etc.
2.How to get your offer?
Please send us your technical parameters,specification or product model ,quantity you want,we will send you our best quotation.
3.If i did not use sensor before,how shall i do?
It does not matter,please tell us some key teachnical parameters and the order quantity,we'll choose you most suitable one and give our best service.
4.How to place the order?
If you accept the price,we would send you the profoma invice to arrange the payment.
5.How long is the production time after placing the order?
It would take 7-10 days ,anyway,when you place the order,we would comfirm the delivery time to you.
