Model Number
|

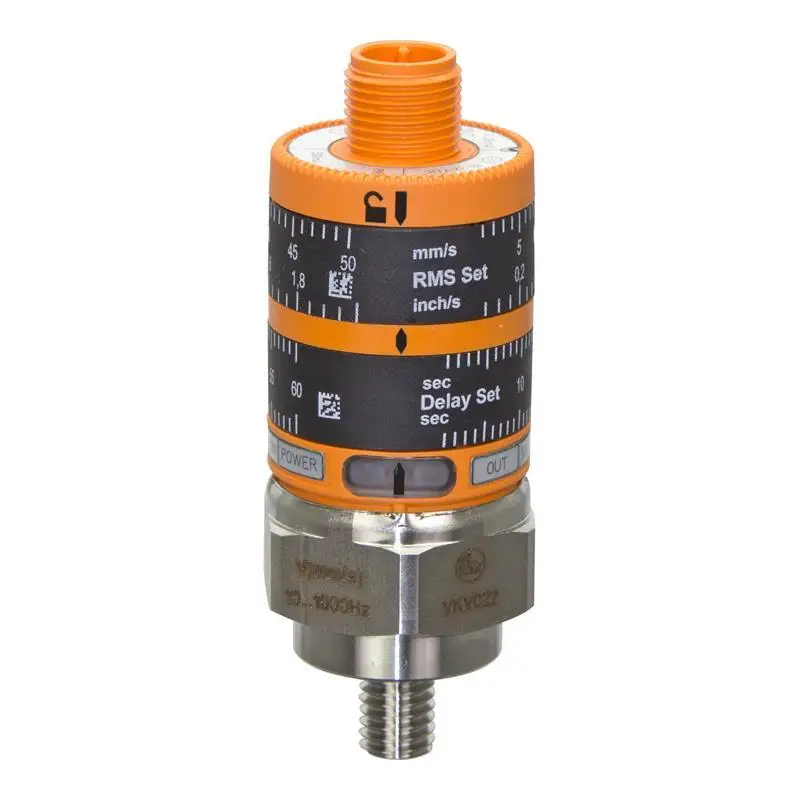

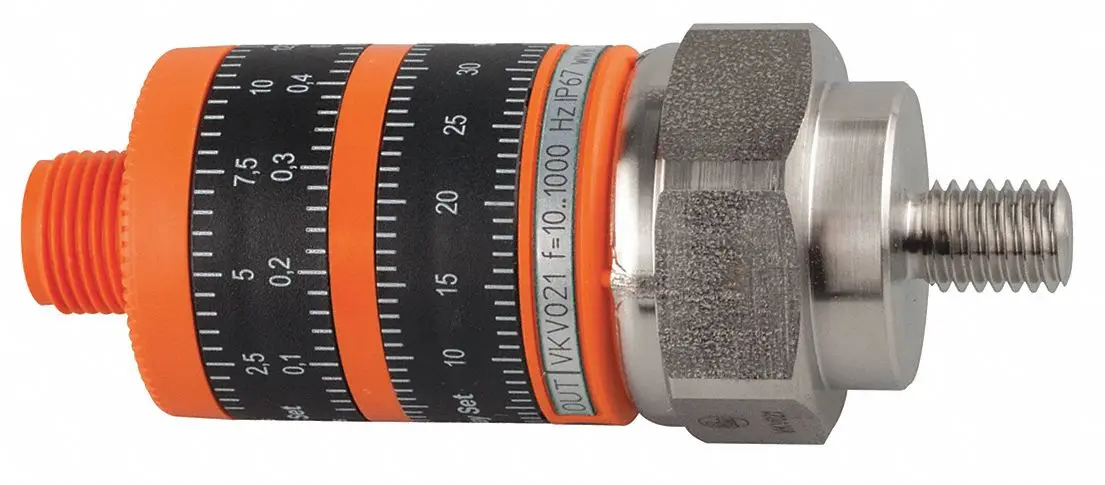

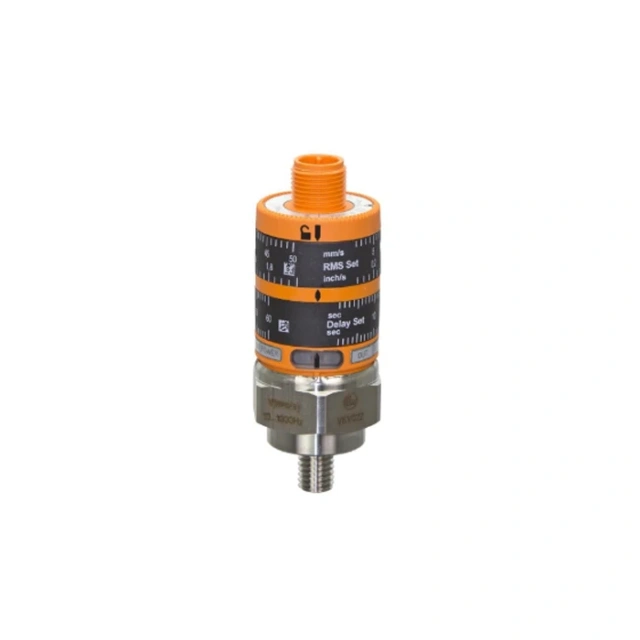

IFM VKV021
|
|
Place of Origin
|
Germany
|
|
Usage
|
Vibration monitor
|
|
Measuring range
|
0...25 mm/s
|
|
Application
|
Vibration monitor Vrms to DIN ISO 10816
|
|
Operating voltage
|
18~32 DC
|
|
Current consupmption
|
＜50
|
|
Digital Output function
|
1 x normally closed DC PNP
|
|
Max. current load per output （mA）
|
500
|
|
Delay [s]
|
1...60
|
|
Measuring range [mm/s]
|
0...25 RMS
|
|
Frequency range(Hz)
|
10...1000
|
|
Accuracy [% of the final value]
|
< ± 3
|
|
Switch point accuracy
|
< ± 4
|
|
Repeatability
|
< 0.5 %
|
|
Linearity
|
0.25 %
|
