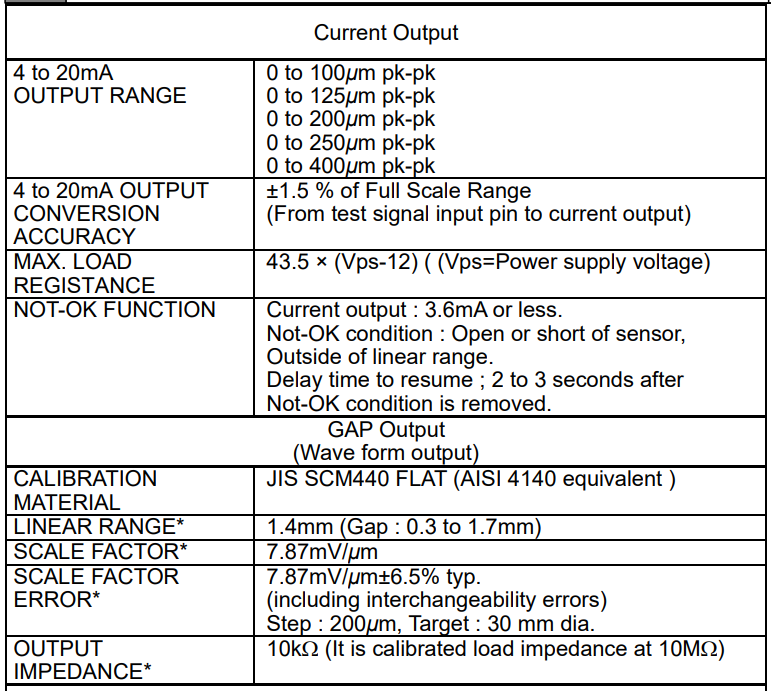

Current output
|
||
|
4 to 20 mA output conversion accuracy
|
±1.5 % of Full Scale Range
|
|
|
Max load registance
|
43.5 × (Vps-12) ( (Vps=Power supply voltage)
|
|
|
Frequency response
|
5Hz to 6,000Hz (+0dB, -3dB) at 900μm Gap TEMPERATURE
|
|
|
Operating temperature
|
0-70℃
|
|
|
Relative Humidity
|
95% RH(non condensing )
|
|
|
Power supply voltage
|
12 to 35 VDC
|
|
|
Sensor tip diameter
|
Approx. 5.5mm (0.217 inch) dia.
|
|
|
OUTPUT IMPEDANCE
|
10k
|
|
