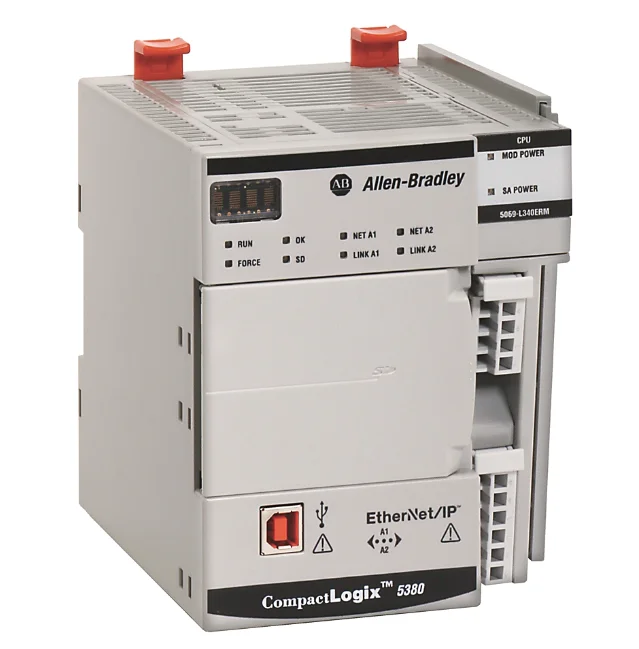

CompactLogix 5380 Controllers
CompactLogix 5380 controllers are part of the Logix 5000® family of controllers. The controllers provide a scalable controller solution to
address a wide variety of applications. The applications range from standalone systems to more complex systems with devices that are
connected to the controller via an EtherNet/IP™ network.
The controllers are mounted on a DIN rail. They can monitor and control local and remote I/O modules, and other devices connected to an
EtherNet/IP network. The CompactLogix 5380 controllers support this functionality:
• Use of Compact 5000™ I/O module as local I/O and remote I/O modules.
• Use Compact 5000 I/O modules, and other I/O modules, as remote I/O modules.
• Support for Integrated Motion over an EtherNet/IP network (not all controllers).
• Use of Dual-IP mode or Linear/DLR mode.
• Use of two Ethernet ports that let the controller connect to EtherNet/IP device-level and enterprise-level networks.
• Use of 1784-SD1, 1784-SD2, 1784-SDHC8, 1784-SDHC32, 9509-CMSDCD4 Secure Digital (SD) card for nonvolatile memory.
• USB programming port for temporary connection.
• CompactLogix 5380 Process controllers (5069-L320ERP, 5069-L340ERP) support PlantPAx® 5.0, and are conformal coated to add a
layer of protection when exposed to harsh, corrosive environments. For more information, see the PlantPAx DCS Configuration and
Implementation User Manual
